AUTOMOTIVE SPLIT CHARGE RELAYS



02-049
12v 60AMP SPLIT CHARGE


TYPE: Voltage Sensitive Relay for Dual Battery Charging

The VSR charges two batteries simultaneously (vehicle & auxillary), whilst eliminating the possibility of draining the vehicle start battery and protecting sensetive electronic equipment powered by the auxillary battery from harmful power spikes on engine start up.
Ideal for use as a split charge relay for towing and all other automotive, marine & leisure applications where a second battery is required to power auxillary devices.

Voltage: 12
Load: 60A
Cut In: 13.3V
Drop Out: 12.8V
Bracket Type: Screw Fit Base

line
02-050

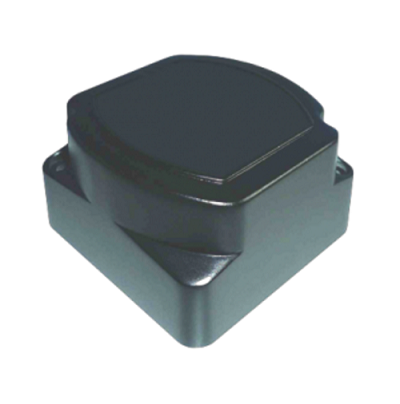

12v 140AMP SPLIT CHARGE


TYPE: Voltage Sensitive Relay for Dual Battery Charging

The VSR charges two batteries simultaneously (vehicle & auxillary), whilst eliminating the possibility of draining the vehicle start battery and protecting sensetive electronic equipment powered by the auxillary battery from harmful power spikes on engine start up.
Ideal for use as a split charge relay for towing and all other automotive, marine & leisure applications where a second battery is required to power auxillary devices.

Voltage: 12
Load: 140A
Cut In: 13.3V
Drop Out: 12.8V
Bracket Type: Screw Fit Base

line
AVSPC10
12V 70AMP CHARGE GUARD SPLIT CHARGE RELAY


Operation:

When the engine is running the device senses the voltage from
the alternator and allows the battery to charge the auxiliary battery.
When the voltage to the main battery drops the unit isolates and separates both batteries. This means the
starting battery will always have enough power to start and the auxiliary battery will never be able to drain it.
Operational voltages 13.4 – 12.6V.
An essential unit especially where “intelligent” alternators are fitted.

Fitting Instructions:

Connect positive (+) from starting battery to pin 1
Connect positive (+) of auxiliary to auxiliary battery to pin 2
Connect earth (-) to pin 3










line
AVSPC20
24V 50AMP CHARGE GUARD SPLIT CHARGE RELAY


Operation
When the engine is running the device senses the voltage from
the alternator and allows the battery to charge the auxiliary battery.
When the voltage to the main battery drops the unit isolates and separates both batteries. This means the
starting battery will always have enough power to start and the auxiliary battery will never be able to drain it.

Operational voltages (24V) 27.0 – 25.4V.
An essential unit especially where “intelligent” alternators are fitted.

Fitting Instructions
Connect positive (+) from starting battery to pin 1
Connect positive (+) of auxiliary to auxiliary battery to pin 2
Connect earth (-) to pin 3










line
AVPP24VR
12V / 24V CHARGE GUARD

The CHARGE GUARD power protector constantly monitors the battery voltage and warns
if it drops below a predetermined level.

If the vehicle’s ignition is on, the Power Protector will constantly warn the driver without
automatically disconnecting all circuits passed through it. If the ignition is off, the Power
Protector will automatically disconnect all circuits passed though it after one minute from
the warning.

• Latest generation battery protection
• Quick and easy to install
• Remote isolation feature as standard
• Available in 12V and 24V
• Can Bus and Multiplex compliant
• Operating temperature -40°C - 120°C
• High peak current capability to 1800A
• Continuous rating to 190A
• Negative & Positive inhibits
• Shock resistant to 40G
• Automatic battery monitoring
• Double latching technology
• Override bleed facility
• Solid State Electronics completely encapsulated
against water, acid, oil and dust
• OEM Specification
Part Number
AVPP24VR Specifications
